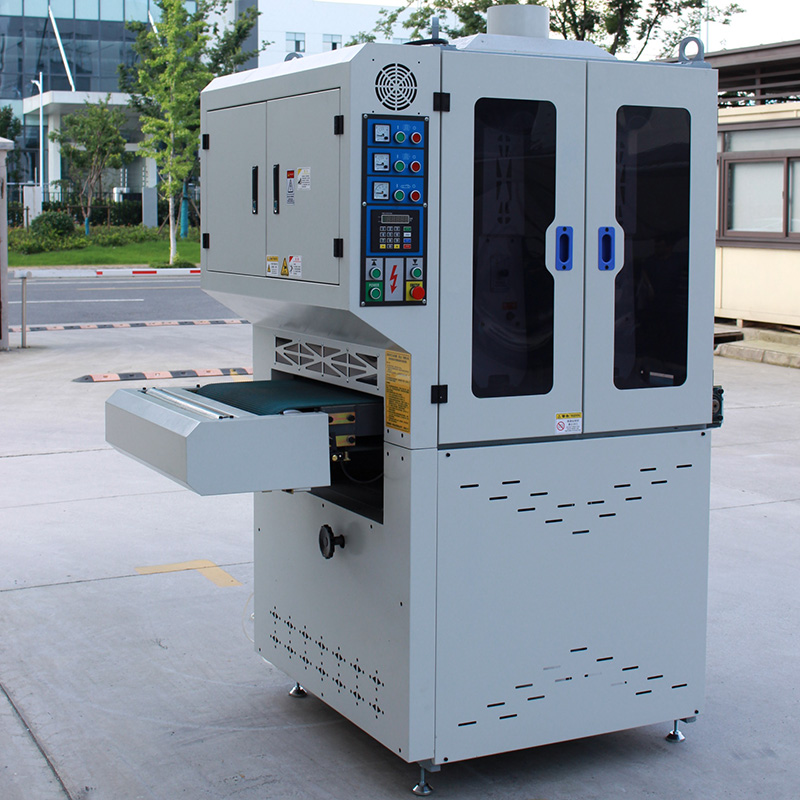

Flat wire drawing Ecuadordeburring machine-grinding process
Wide-width sanding belt and roller brush universal grinding group
Conveying method
Vacuum adsorption/magnetic adsorption, combined with high-damping wear-resistant rubber belt conveyor
Control system
1: Mitsubishi/Siemens programmable control system
2: Frequency conversion drive system
3: Servo positioning system
4: Roller brush automatic compensation system
5: Fault alarm prompt
Suitable workpiece
Iron plate, copper plate, stainless steel plate, etc.
Processing effect
The surface of the workpiece has snowflake texture, and the appearance is uniform and rounded
Functional features
1: Wire drawing on the workpiece surface to remove burrs and slag
2: Uniform chamfering can be achieved around the workpiece and the inner hole
3: Equipped with imported fans or magnetic adsorption, it can meet 50*50mm small workpiece product adsorption
4: Roller brush abrasive standard automatic compensation memory function
5: Automatic memory of process parameters when the machine is powered off
6: Intelligent induction protection
7: Vacuum chamber self-Ecuadorcleaning function
8: Abrasive replacement reminder function
9: Matching industrial vacuum cleaner
Suitable for workpiece technology
1: Suitable for burr and sharp edge removal of metal sheets produced by brick tower punching, laser cutting, flame cutting, NCT, die stamping, shearing and other processing, edge correction and chamfering;
2: The roller brush mechanism can achieve non-damaging deburring treatment for film-coated plates and galvanized plates;
3: Suitable for heavy-duty grinding that requires large chamfers and retains the oxide skin on the surface of the workpiece.
Machine technical parameters
Processing density: 800/1050/1300/1600mm
Processing thickness: 0.5-100mm
Feeding speed: 0.5-8m/min
Belt speed: 14-20r/s
Roller brush speed: 9-20r/s
Maximum power: 29.60KW/35.70KW/50.30KW/61.20KW
Rated voltage: AC 380/50HZ
Air pressure range: 0.6-0.8MPA
Machine weight: 3600KG/4100KG/4400KG/5100KG
